SHIPBOARD DAMAGE CONTROL, PERSONNEL PROTECTION, FIREFIGHTING AND CBR-D
 MUSEUM WEBSITE

DAMAGE CONTROL MUSEUM
DC EQUIPMENT Museum

Damage Control Equipment

Steel Joint Breaker Wedges

Hardened steel jointing and breaking wedges, used in access/shoring operations. Four were provided with each kit as part of the firefighting access kit. size 4 was 3/4" x 1-1/2" x 4", WT 2.0 lbs, Vol, 2.2in.3 NSN 5120-00-224-9486. Size 5 was 2" x 2" x 5", WT. 5.0 lbs. Vol. 10.0 in.3 NSN 5120-00-224-9487.

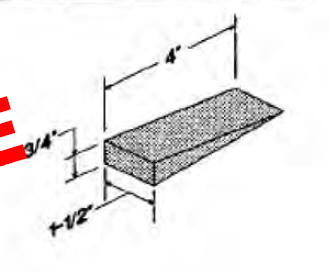

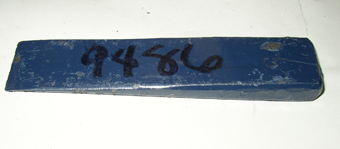

Size 4 Joing Breaker Wedge

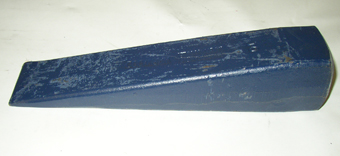

Size 5 Joing Breaker Wedge
                    Size 4                                                                                   Size 5
