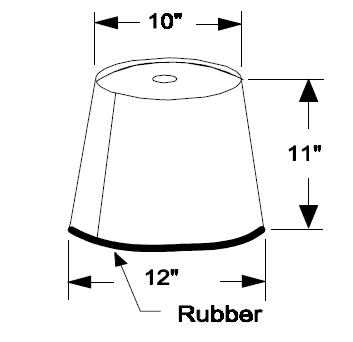

DESCRIPTION: Similar to the Box Patch, the bucket patch
box is open at one end and has a gasket running along
the face edges. The gasket may be rubber or canvas
stuffed with oakum. USE: Used in a variety of ways to
stop leaks. It can be pushed into a hole bottom first as
a metal plug or to cover small holes from protruding
side in bulkheads or ship's hull. Secured with J, T, or

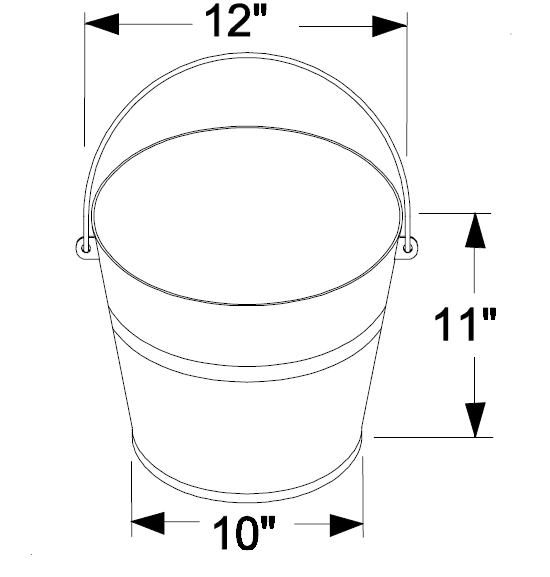

L bolts. USE TIP: Manufactured by ship's force. Use
metal bucket with 1/2" gasket material on edge. Use with
J, T or L bolts. Marline around the stock to within ½”
of end will help prevent slipping and allow improved
grip. REF: NAVSEA Drawing No. 804-5959243. Parent AEL.
PATCH-BUCKET - 1HS0000-LL-CJ7-5881 WT. 2.0 lbs. VOL.
1,320.0 in3 |
